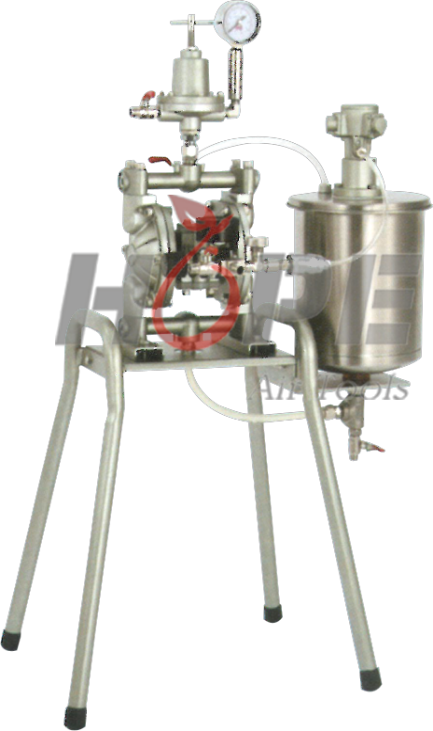

◆ 型號 : DR-15RSS

◆ Fluid Inlet & Out Let Dimension: 3/8”PT

◆ Air Inlet & Outlet Dimension: 1/4”PT

◆ Pressure Ration: 1:1

◆ Transmitting Capacity: 5L/min 0.4kg/cm ²

7.5L/min 1.0kg/cm ²

10.5L/min 2.0kg/cm ²

◆ Used Air Pressure: 1-5kg/cm ²

◆ Max. Painting Pressure: 5kg/cm ²

◆ Max. Pump Speed: 160times/min(5kg/cm ² )

◆ Min. Pump Speed: 80times/min(0.4kg/cm ² )

◆ Max. Fluid temperature:45 ℃
