◆ Type : F LMA96
◆ Application:
‧ Paint Spray Gun (gravity, siphon, and pressure feed styles)
‧ Air measuring instruments (requiring clean, dry air)
◆ Features:
‧ Available as single unit or combinations, offering a wide range of filters to meet all requirements, from technical-clean air working equipment via process air to odor-free for breathing.
‧ Design to remove most liquid and solid particles as well as partially gaseous components from the air supply.
|
F96A FM96 FA96
|
■ FLMA96 Filter Range
|
◆ Port S i ze：PT.NPT.BSP 1/2", 3/4”, 1”
◆ Filter Element： 5 μ + 0.01μ + Activated-Charcoal
◆ Max Input/Output Pressure：250PSI
◆ Max Flow ： 25 00 l /min
◆ Operating Temp Range ： 5 ℃ ~ 60 ℃
◆ Oil Capacity：210ml
◆ 壓力錶孔 ： 1/8 ” NPT
|
|

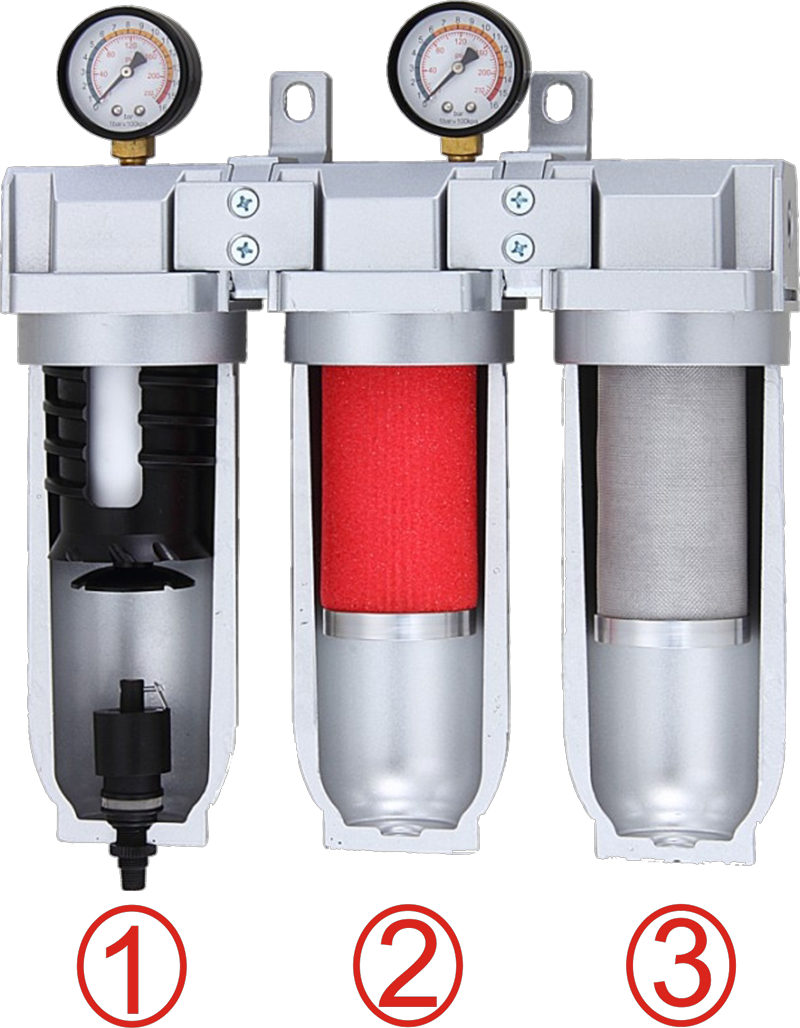

‧ Pre-Filter F96 The first filter stage separates particle ＞ 5um, condensed water and oil. The inside filter element of PE material separates the particles large than 5um. Centrifugal force from Cyclone type filter removes water, oil and impurities.
|
|
|
|
|
■ F9607 F96過濾芯，可過濾直徑5 µm以上的固體顆粒物質，表面積108平方釐米。不可重複使用，建議6個月後更換。 |
|
|
‧ Micro-Filter FM96 The second filter stage separates smallest particle ＞ 0.01um, efficiency to 99.998%
|
|
|
|
|
■ FM9607 FM96過濾芯 ， 可過濾直徑0.01微米以上的固體顆粒物質， 過濾精度99,998%，建議6個月後更換（或當兩氣壓錶的壓力差達0.8 Bar時更換），不可重複使用。
|
|
|
‧ Activated-Charcoal-Filter FA96 For adsorption of ol vapors. Protecting the painter from the harmful vapors and gases.
|
|
|
|
|
■ FA9607 FA96活性炭 過濾芯 ，建議3個月後更換。 或當進出口壓差最大為0.8 Bar 時更換濾芯 ， 不可重複使用。
|
|
|
註: 嚴重污染時應提前實施檢查，必要時更換濾芯。汙染的濾芯會造成設備干擾或故障。還存在影響健康永久性受損甚至死亡的危險。 |
|
